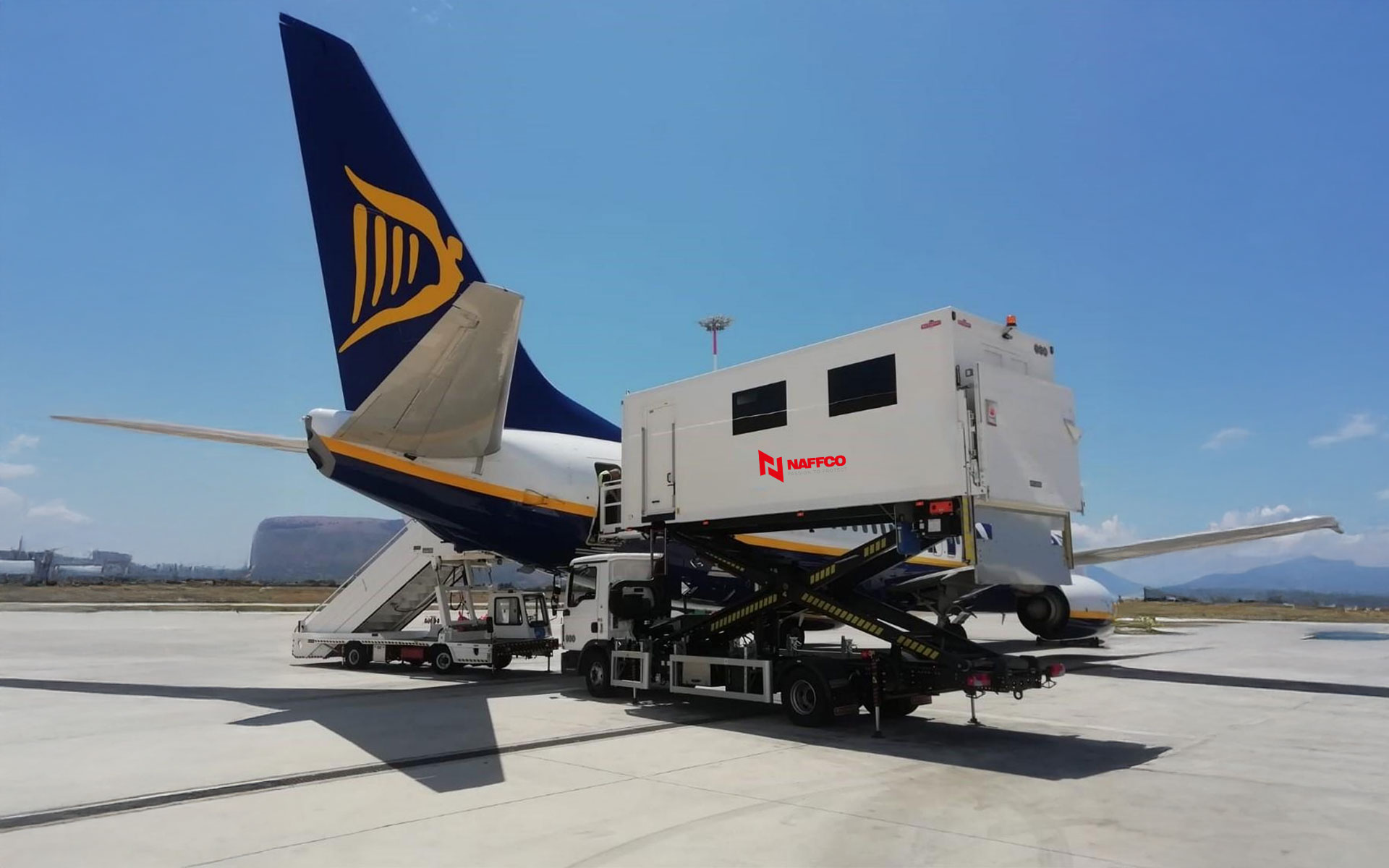

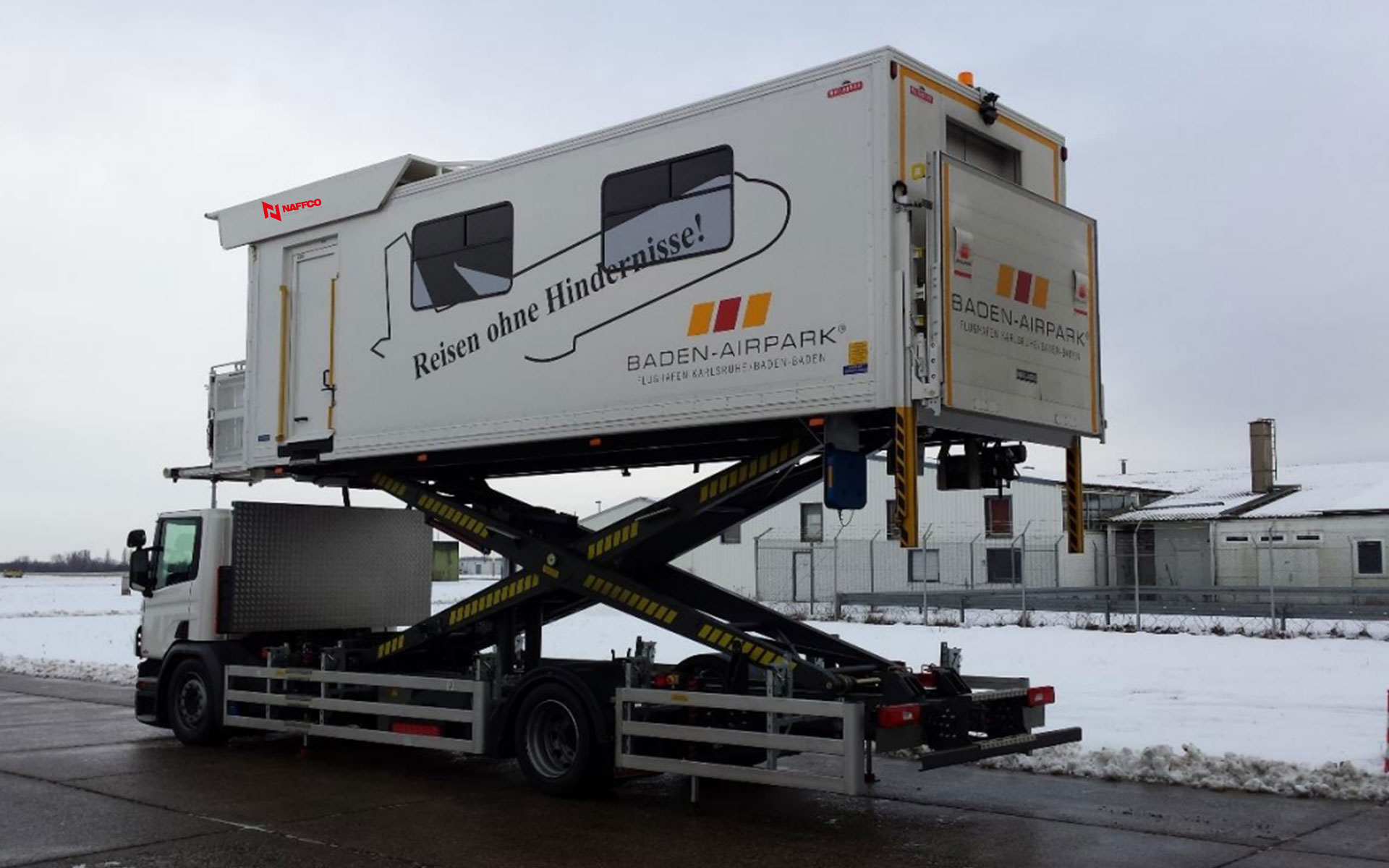

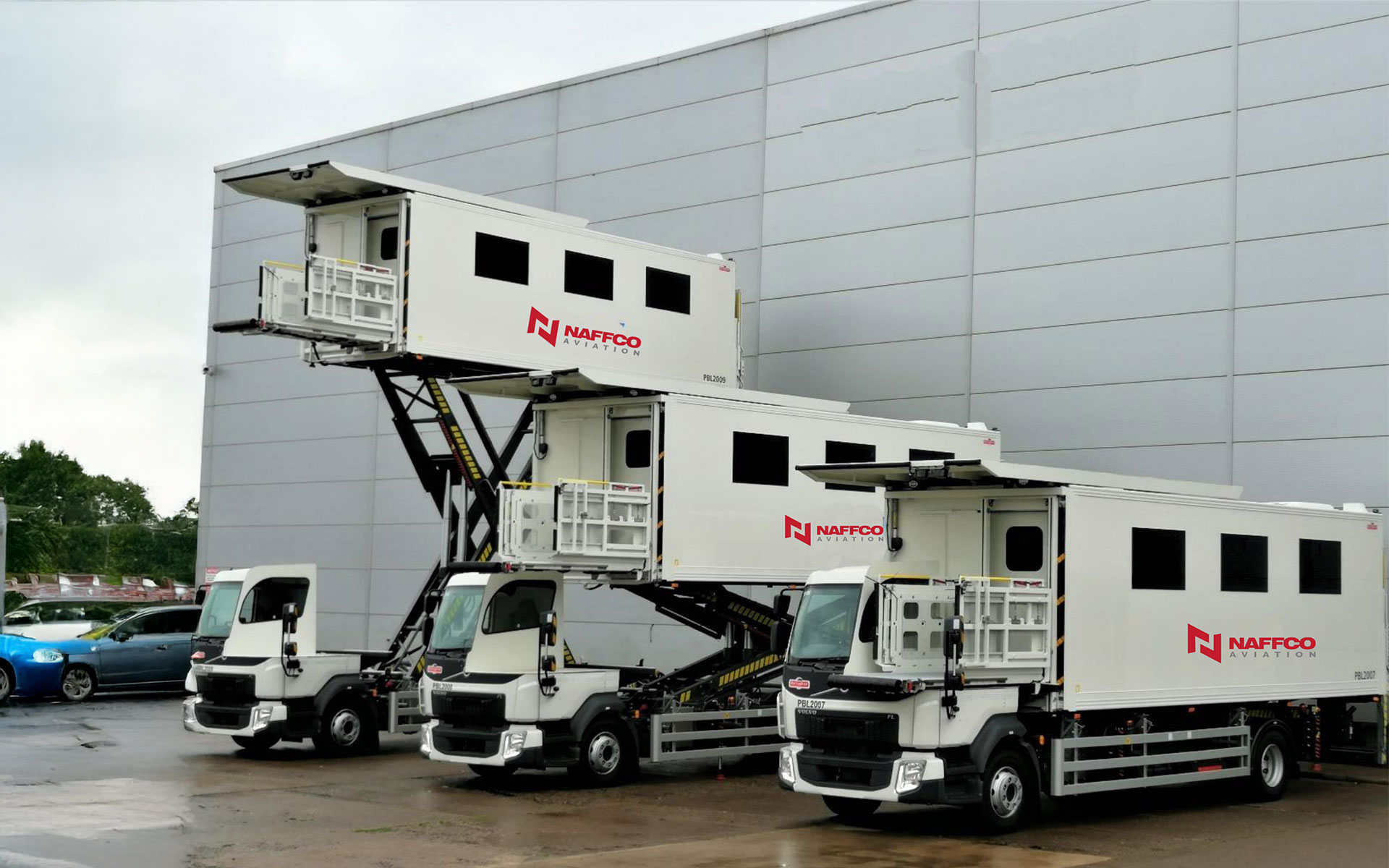

Truck Mounted Medical/PRM Lift

Platform

• Full width platform with hydraulic extension and swivel nosepiece
• Extendable sliding handrail each side
• Non- marking rubber bumpers fitted to all leading edges for aircraft protection

Hydraulics

• Hydraulic oil tank with sight level gauge, shut off valve and magnetic drain plug
• Hydraulic box with control valves and manual overrides for emergency procedure
• High pressure filter, return line filter and suction strainers
• Steel reinforced hydraulic hosing
• Stabilisers (x4) with dual pilot operated check valves and pressure switches
• Platform extend ram (600mm)
• Single acting 2-stage lift rams (x2)

Van Body

• Van body exterior approx. 6600mm long x 2530mm wide x 2300mm high
• Van body walls and roof insulated with 50mm GRP panels
• Van body floor (25mm) with vinyl covering, UPVC skirting and GRP underside
• Double hinged doors front (with windows)
• Double hinged doors rear (without windows)
• Side entry door with access ladder for van body with non-slip treads
• Proximity sensor and air ram door lock for rear and side door
• Windows passenger side (x3) & driver side (x2)
• Break glass hammer
• Handrails both sides
• Wheelchair floor tracking (x6)
• Tail-lift (500kg SWL) with full surround safety gates
• LED interior lights (x8)
• LED exterior work lights, x1 front & x1 rear
• Flashing amber beacon on rear of van body roof
• Side marker lights (x4 amber each side)
• Front (x2 white) and rear (x2 red) roof marker lights
• Control panels front and rear of van body
