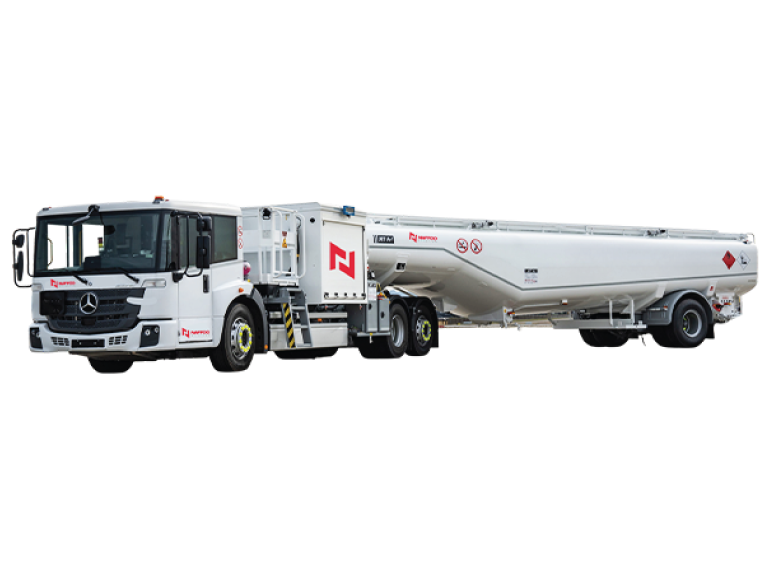

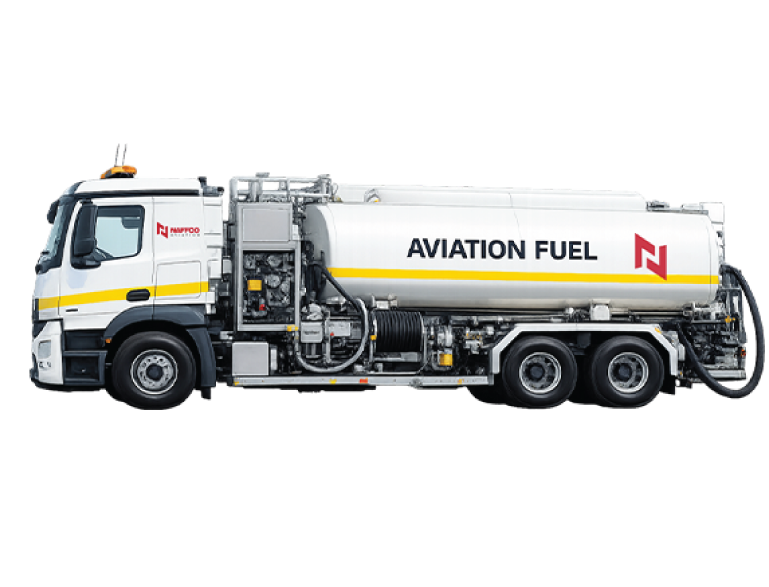

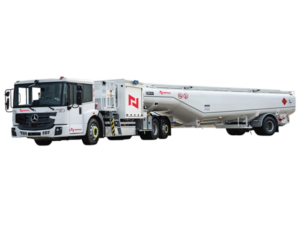

aircraft refueling and ground support equipment.

Chassis
• Automatic/Manual transmission
• Exhaust compliant with NFPA 407
• Heavy-duty rear bumper

Tank System
• Stainless Steel Tank (1,500 – 15,000 Gallons)— DOT406 & NFPA 385 compliant
• Pneumatic vent system
• (2) Water drains
• Bottom load system with pre check test
• Overfill protection system for both high and high-high levels with shutoff

Pump System
• Centrifugal pump – Hydraulically driven with hydraulic motor and cooler
• 3” Pneumatic bypass with air regulator and pressure gauge

Filter System
• 6th Facet filter water separator vessel with internal filters
• Air eliminator and pressure relief valve
• Water detection system
• Inlet and outlet shutoff valves
• Low-point filter drain

Hose Reels and Fueling Equipment
• TCS 700 Series Meter
• TCS 3000 Remote Register

Hose Reels and Fueling Equipment
• Underwing Hose Reel:

• Single-wrap hose reel, 2.5” x 50 Ft hose, electric rewind + hand crank
• Meggitt F117 Series Underwing Nozzle (HECV 45 PSI, strainer, dust cap, 2” NPT thread)

• Over-wing Hose Reel:

• Single-wrap hose reel, 1.5” x 50 Ft hose, electric rewind + hand crank
• OPW Over-wing Nozzle (100 mesh strainer, grounding cable, dust cap, 1.5” NPT inlet)

Hydraulic Lift Platform
• Mid-mounted hydraulic scissor lift
• Service capability up to A380 / 777-9X aircraft
• Emergency lowering procedure with dual bleed-down valves
