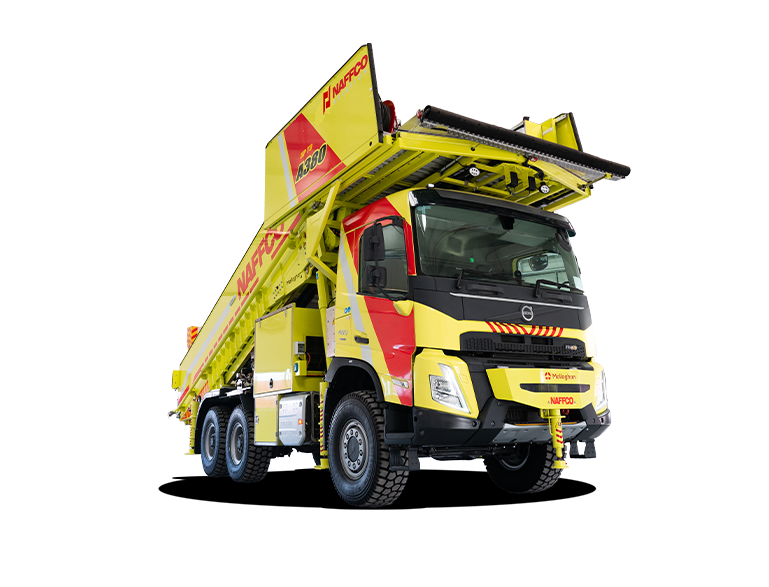

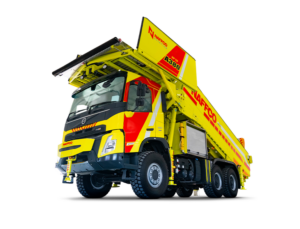

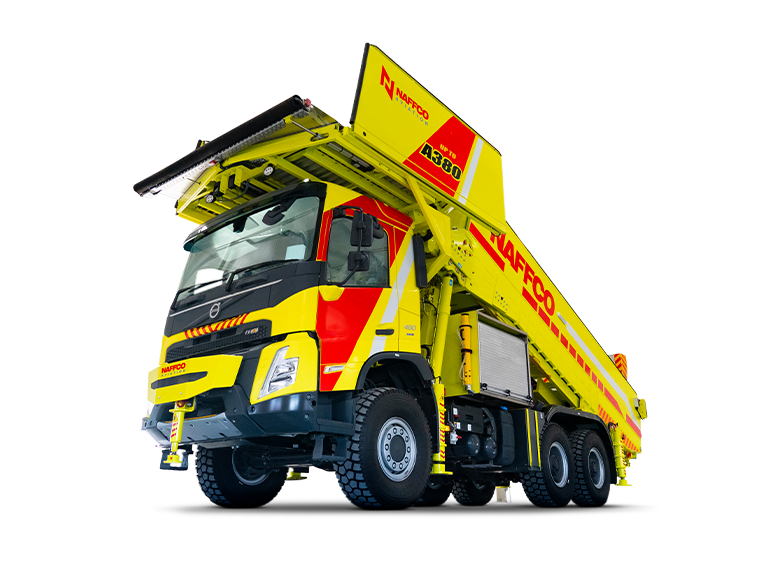

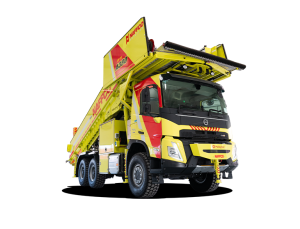

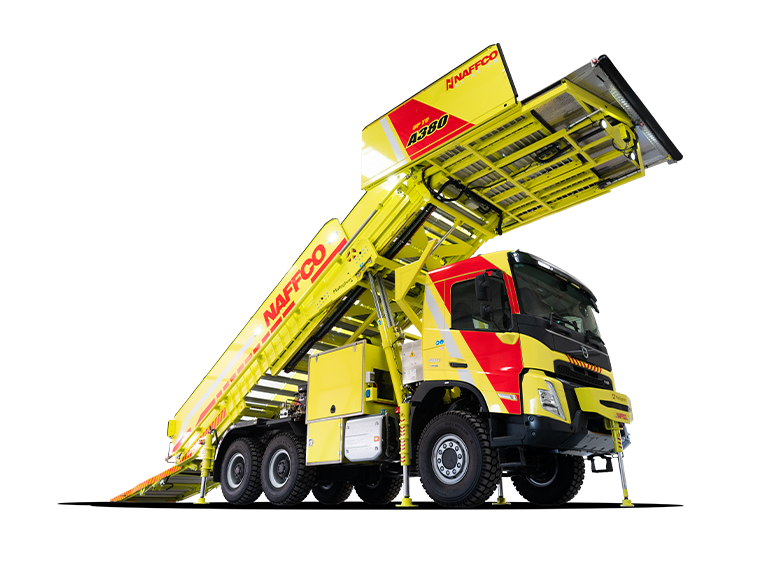

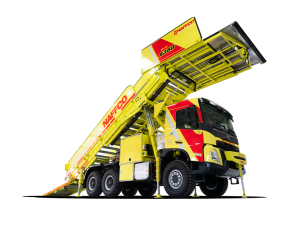

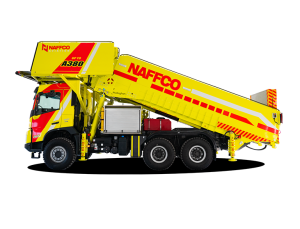

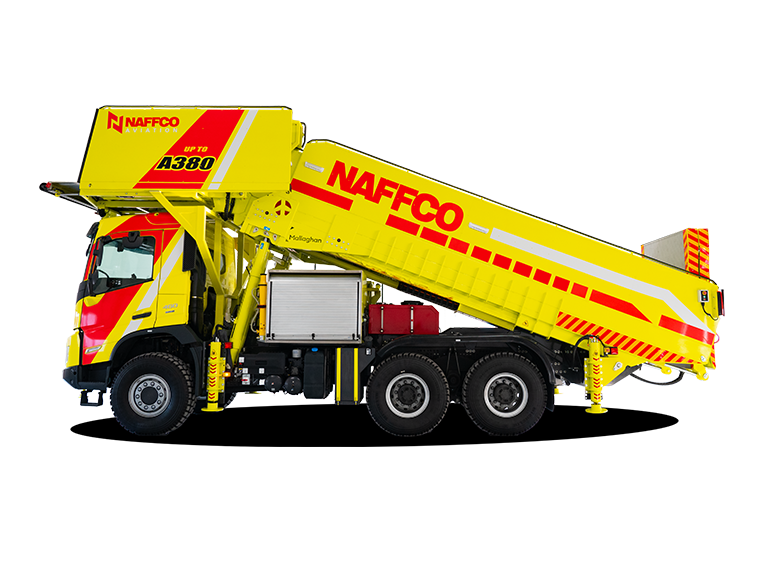

Fire Rescue Stair developed for rapid emergency evacuation.

1. DRIVER CAB

• Main Control Panel
• 230V Charging points (Mercedes Benz)
• Sirens at front of driver cab

2. PLATFORM

• Sill heights from 2620mm — 8000mm
• Platform 2.3m Internal Width & 900mm Extension
• Swivel Nose Section
• Hose reel with booster hose
• Storage for 30m lay-flat hosing
• Platform control panel
• Positive displacement fan
• Driver-assist forward camera
• Storage for e.g. Hydraulic Cutting Tool & Hooligan Tool
• Water outlets on platform x2 via diverter valve
• C-Storz hose coupling with ball valve shut off
• 230V mains power connection point
• 6kg ABC fire extinguisher
• Various LED non-glaring lights &emergency beacons
• Water outlets on platform x2 via diverter valve

3. STAIR

• Staircase widths of lower stair 1500mm & bupper stair 700mm
• Hydraulically telescoping stair section
• Waterway to platform via telescopic pipe
• Anti-Slide material, can be used barefoot

4. OPTIONAL EQUIPMENT

• CAS — Controlled Approach System according to AHM913
• Hose reel on platform (electric rewind)
• Hose reel on chassis
• Generator for Auxiliary Power
• Camera systems (various)
• Distance sensor systems (various)
• Additional storage facilities to customer preference
• Handheld torches
• 400V mains power connection point
• Emergency Eject Socket
