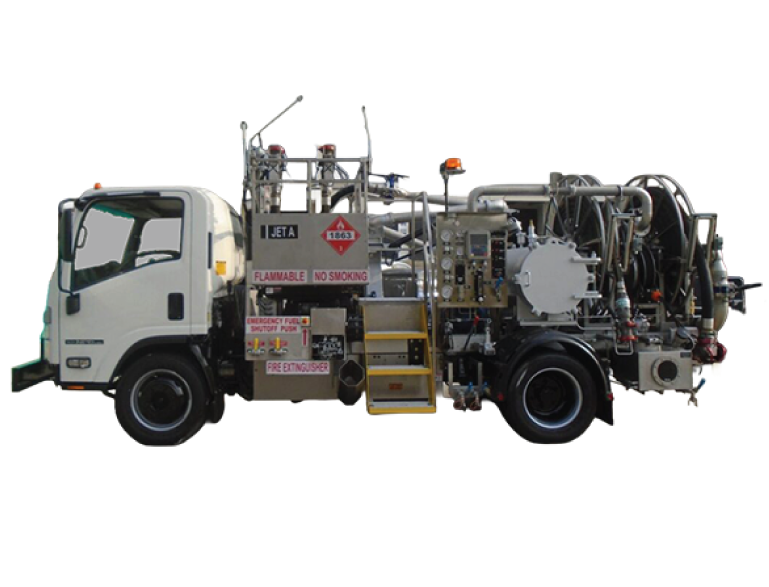

Hydrant Dispenser –Upto 1,200 GPM (Gallons per minute)
Modular design built on a international commercial chassis offers a complete hydrant dispensing operation with a boom system fuel dispensing to platform and being capable to serve up to an A380 aircraft complete with a separator vessel filter, air eliminator and thermal pressure relief valve. The detailed technical specs are as follows:
Chassis Features
Automatic/Manual Transmission
Exhaust Modified per NFPA 407
Integrated Fire Suppression System
Heavy-Duty Rear Bumper and Yellow Front Bumper
PTO System (Power Take-Off)
Fueling Module
Rear-Mounted Single Wrap Hose Reel (Underwing)
4″ Eaton Pressure Controlling Coupler with Pantograph and Easy-Lift Hydraulic System
Pneumatic Inline Valve Pressure Control System with HECV
(3) Emergency Fuel Shutoff Switches with Engine Kill
(2) 20 lb Fire Extinguishers with Brackets
Brake Interlock System with Override and Indicator Lights
Filter System
Separator Vessel Filter (Carbon Steel Fabrication)
Air Eliminator and Thermal Pressure Relief Valve
Latest Edition Filter Elements with Water Detection System
Inlet and Outlet Shutoff Valves
Upstream and Downstream Water Drains
Metering System
TCS Control Meter Setup for Aviation Fuel at 1000 GPM
Direct-Mounted Electronic Register (TCS 3000)
Hose Reel & Fueling Hose
(1) Underwing Hose Reel, 2.5″ x 50 Ft Hose
Electric Rewind with Auxiliary Hand Crank
Pressure Controls
Air/Fuel Pressure Control System
45 PSI Hose End Control Valve (HECV)
Control Panel
Stainless Steel Construction
Multiple Pressure Gauges (Pump, Fueling, Hydraulic, Air)
Emergency Shutoff Systems with Depressurization Valve
Differential Pressure (Dp) Gauge with High Dp Shutoff (per JIG)
Full Interlock Indicators and Work Lights for Night Operations
Integrated Flow Diagram and Operational Instructions
Lift Platform
Mid-Mounted Hydraulic Scissor Lift for A380/B777-9X Service
Emergency Lowering System with Dual Bleed-Down Valves
Fuel Boom System Keeps Hoses Elevated During Fueling
