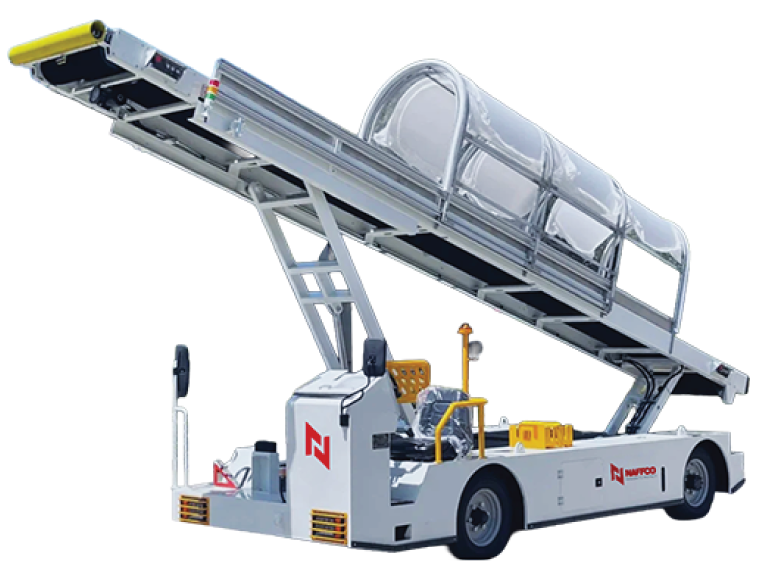

Conveyor Belt Loader – Diesel
|
Main dimensions |
Overall length | mm | 8240 |
| Overall width | mm | 2150 | |
| Overall height (without canopy) | mm | 2050 | |
| Overall height (with canopy) | mm | 2100 | |
| Wheels base | mm | 2900 | |
| Conveying-belt Width: | mm | 700 | |
| Conveying-belt Length: | mm | 8000 | |
| Front/rear tread | mm | 1730/1680 | |
| Brake | Service Brake | Hydraulic – Brake fluid operated | |
| Type Service Brake | Front Disc – Rear Drum | ||
|
Engine |
Type | CUMMINS QSF2.8 | |
| Power | Kw/rpm | 37 KW @2500 rpm | |
| Cooling | Liquid | ||
| Emissions lever | Tier 3 | ||
| Transmission | Type (Automatic) | OKAMURA | |
| Suspensions | Front/Rear | Leaf spring | |
| Electric System | Type | Volt | 12V, with 90AH battery |
| Fuel system | Fuel cell capacity (Diesel) | Liter | 100 -120L |
| Hydraulic system | Hydraulic oil tank | Liter | 60 -100L |
|
Safety Features |
1. The hydraulic action cannot be done unless the parking brake is ON 2. Buzzer alarming when boom lifting is made.
3. Convey belt working and boom lifting cannot operate simultaneously. 4. Emergency stop button for safety operation at front and rear of boom and instrument panel. 5. Automatic brake can be actuated when front sensor is on(option) 6. It has Engine second start-up protection 7. Voice alarming when Forward and Backward (option). 8. The gap between front and rear roller for belt are 70mm, which prevents the belt from being crashed by the luggage. 9. Two groups of Correction device are equipped under conveyor frame, which make sure the belt running in the right track. 10. Hydraulic locks are installed on the cylinders and easy to decline the boom under emergency conditions. |
|
0ptions |
ASD SYSTEM (Germany IFM MOBILE 3D SENSOR+ IFM IR),
Water proof Canopy on Belt (full closed), Open canopy on belt, |
