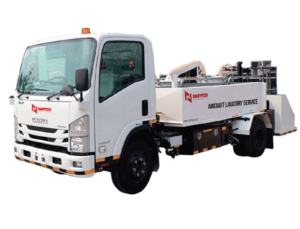

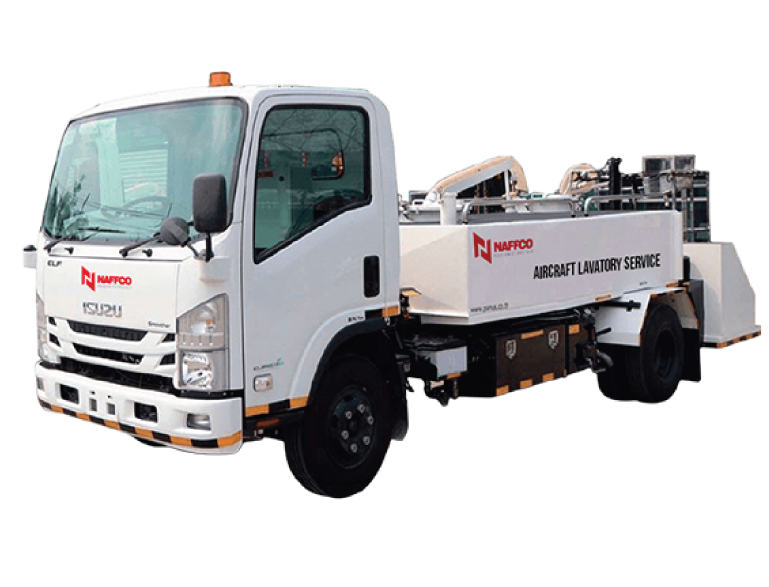

Lavatory Service Trucks

We provide portable lavatory service trucks designed specifically for aircraft servicing and catering to all aircraft types. Totally enclosed self contained modular design to incorporate the standard commercial chassis manufacturers for mounting the tanks and servicing platform. Comes equipped with a vacuum pump enabling removal of waste clogging, thereby maintaining a hygienic environment and keeping in line with international sanitation norms

Highlights

International standards, such as, IATA AHM971, AHM910, AHM913, AHM 915

Details

Features

Portable Lavatory Service Truck

Our Potable Toilet Servicing Truck is designed with the capacity of providing cleaning and clearing of toilets for aircrafts from A320 ,A330, A350 upto B747. In compliance with international standards, such as, IATA AHM971, AHM910, AHM913, AHM 915, etc.

Specifications

Model – PA-TSU30-01 (with tail-lift)

Water Tank Capacity – 1,500 – 3,500 liters

Rinse Tank Capacity – 500 – 1800 liters

Maximum platform floor height – 3000 mm

Overall Dimensions (while platform fully down) – 800x1180x1000 mm

Gross Vehicle Weight – 200kg (approx.)

Max. Water Pressure – 50psi

Max. water flow rate ≥ 90L/min.

Max. vacuum(Mbar) – 931mBAR

Max. Suction Air Rate (m3/h) – 356 m3/h

Max hydraulic pressure – 3,050 psi

Note: Tolerance of mentioned data (±) 4%, technical modifications reserved.
